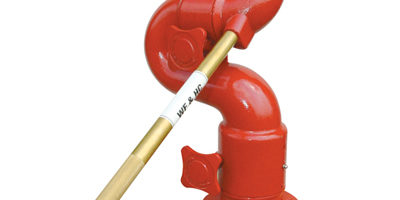

William’s Alpha Series Manual Monitor features:

The single 4” full-flow waterway with internal turning vanes is designed to provide maximum efficiency at a maximum flow of 2,000 gpm (7,570 Lpm),With rugged, corrosion resistant brass construction, the Alpha-E monitor flows up to 1,250 gpm (4,732 Lpm).  Yet it is compact – just 16” (406 mm) in height without nozzle and approximately 58 lbs (26 Kg).

3” NPT female outlet and a choice of 3” or 4” 150 lb ANSI flange.

The tiller bar controls vertical movement 90° above and 45° below horizontal.

The monitor has a full, continuous 360° rotation with rugged, stainless steel lock hardware.  Brass balls are used in all swivel joints with grease fittings for easy lubrication.  The monitor comes with durable acrylic urethane finish.
